Description

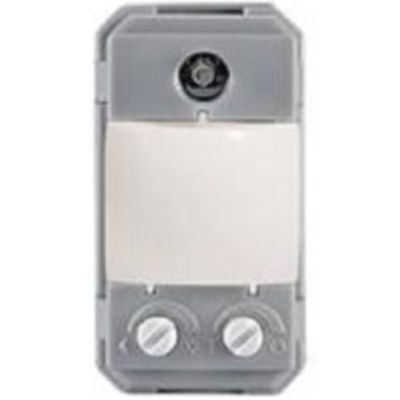

1-module dimmer for built-in domestic series with white button.
Datasheet
Technical specifications:
• Power supply 230V AC ± 10% 50 Hz
• Maximum driveable power LE:
• 200W incandescent lamps
• 200W halogen lamps
• 25W LED according to EN61000-3-2 standard
• Halogen with L-type 200W electromechanical transformer
• Maximum driveable power TE:
• 25W LED according to EN61000-3-2 standard - max 100W
• IP40 protection rating
• Section of cables at terminals 0.75..... 1.5 mm²
• Installation of 1 civil module in a 503 type built-in box
• Operating temperature from -10°C to +50°C
• Storage temperature from -10°C to +60°C
• LVD/EMC marking regulation EN60669-2-1
• Dimensions of a civil module in a 503 type flush-mounted box
