Description

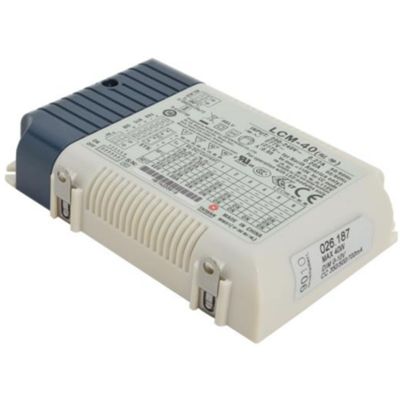

The 9010 Belfiore 026.187 driver is designed to power constant current LED modules, offering an adjustable output based on the desired current.
It features dimmable control via 0–10 V signal, allowing precise adjustment of light intensity.
With an efficiency of 91% and a power factor of 0.975, it guarantees high performance.
The IP20 protection makes it suitable for indoor environments.
Datasheet
• Power 40 W
• Input 180–295 V~
• Constant current type
• Dimmable 0–10 V control
• Adjustable outputs 350 mA 2 V–100 V (35 W)
• Adjustable outputs 500 mA 2 V–80 V (40 W)
• Adjustable outputs 700 mA 2 V–57 V (39.9 W)
• Adjustable outputs 900 mA 2 V–45 V (40.5 W)
• Adjustable outputs 1050 mA 2 V–40 V (42 W)
• Efficiency 91%
• Power factor 0.975
• Insulation class II
• Degree of protection IP20
• Dimensions 124 x 82 x 23 mm
