Description

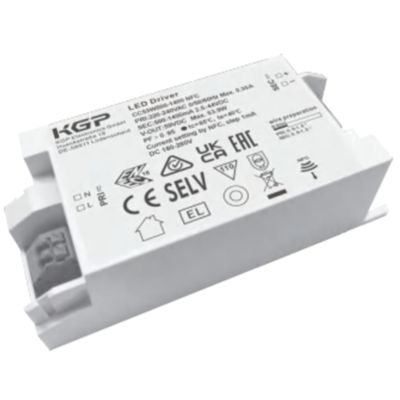

The 026.328 is a constant current LED driver with NFC configuration (settings in 1 mA steps) that supports outputs from 500 mA to 1400 mA, with a maximum power of 53.9 W.
The minimum efficiency is 89%, it can be powered by 220-240 V AC (range 198-264 V) or by 180-280 V DC sources.
The device includes protections for short circuit, overload and no-load operation.
Datasheet
• Output current 500-1400 mA
• Maximum output power 53.9 W
• Output voltage: 2.5-44V DC (varies according to current)
• Input voltage 198-264 V AC / 180-280 V DC
• Maximum input current ≤ 0.35 A
• Efficiency ≥ 89% (at full load, 230 V)
• Short circuit, overload, no-load operation protection (auto recovery)
• Degree of protection IP20
• Operating temperature (Ta) –20 +40 °C
• Container temperature (Tc) 85 °C
• Dimensions 97 × 43 × 30 mm
