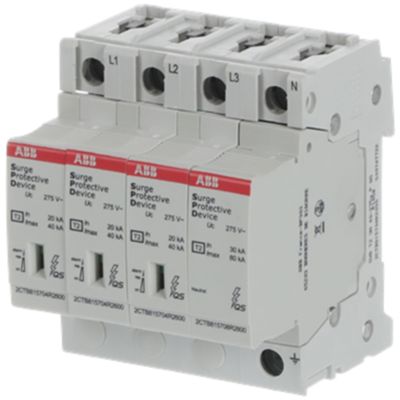

Surge arrester for photovoltaic systems T2 3+N 40KA OVR
Description
SPD type 2 surge protective devices protect low voltage consumer systems from surges as they are tested as SPD type 2 according to IEC 61643-11.
The devices are compatible with the compact System pro M series, the SPDs with "TS" are optionally equipped with an auxiliary contact.
The variant with "reserve varistor" offers additional protection for the system, since the SPD is not completely disconnected from the network at the end of its service life, but with an additional smaller varistor it still provides basic protection and the system is therefore still protected until the surge arrester is replaced.
Product Code: 2CTB815704R2000
Datasheet
• Product type T2
• Discharge current 40KA
• Type of removable cartridges
Properties
Cerifications:
