Description

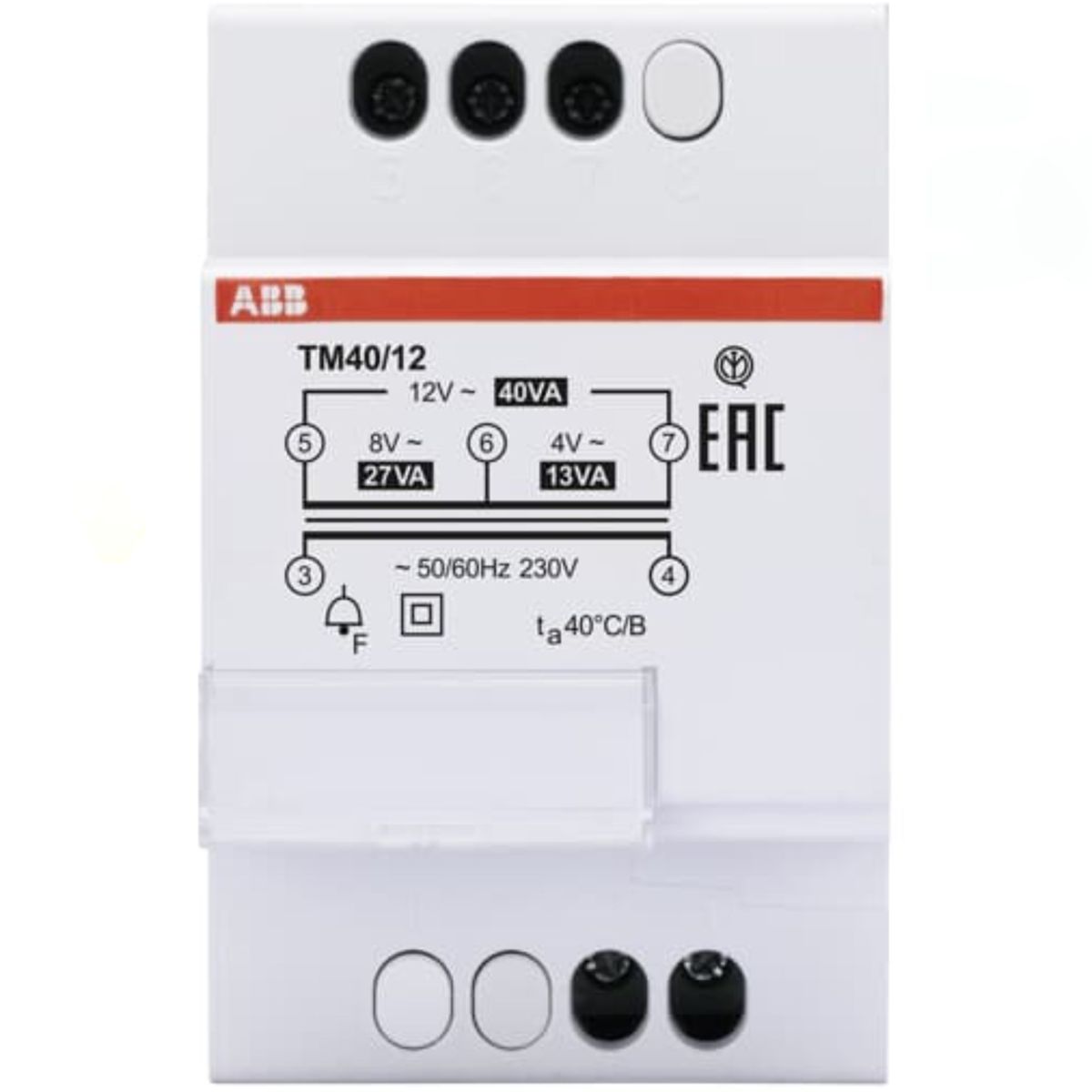

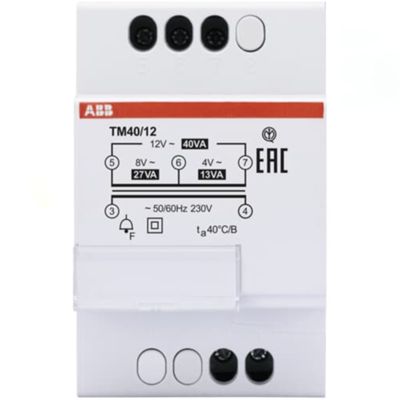

The ABB TM4012 modular safety transformer (TM40/12 series) is designed to power SELV safety-low voltage devices, such as doorbells, buzzers, or acoustic signals. The primary is 230 V~ while the secondary supplies 4 V, 8 V, or 12 V AC, managing up to 40 VA.
Suitable for installation on a 3-module DIN rail, it guarantees double insulation between the primary and secondary windings, compliance with IEC/EN 61558-2-8 standards and IMQ certification.
Ideal for residential and commercial environments where intermittent power supply is required in complete safety.
Datasheet
• Model TM4012 (TM40/12)
• SELV modular transformer type for doorbells
• Primary voltage 230 V AC 50/60 Hz
• Selectable secondary output 4 V, 8 V or 12 V AC
• Rated power 40 VA
• Maximum output current 10 A
• SELV safety grade, double insulation
• 35 mm DIN rail mounting on 3 modules
• Dimensions 52.5 × 85 × 65 mm (W×H×D)
• Net weight approximately 0.45 kg
• IP20 protection
Package Contents:
• 1 ABB TM4012 40 VA transformer
