Description

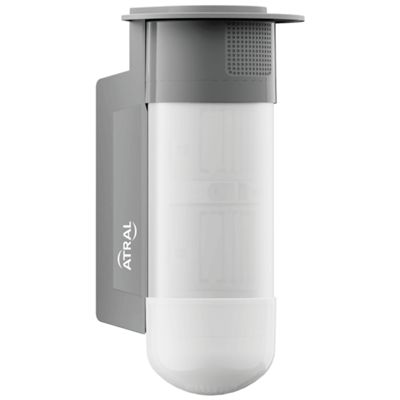

The DL158AX combines two passive infrared sensors (one fixed horizontal and one vertical adjustable on four ranges) with a specific algorithm to guarantee external protection and the recognition of human presence while excluding pets.
The anti-masking function activates an alarm if both beams are obscured, ensuring 24/7 security.
The ASA resin body is resistant to UV, weather and shock (IP54/IK07), while the TwinBand radio protocol (868+433 MHz) offers a range of up to 1000 m with secure encrypted communication.
Kit includes range lenses (4m, 8m, 12m, 15m), area masks, RXU15X batteries and wind skirting.
The battery provides up to 5 years of life in real-world conditions.
Datasheet
• Dual PIR technology – coverage 4–15 m × 90°
• Animal-immune
• Anti-masking active 24 hours (after 60 seconds blackout)
• TwinBand radio 868 + 433 MHz, range up to 1 000 m
• Degree of protection IP54 / IK07
• Self-protection against opening, detachment, radio interference
• RXU15X batteries (3 V–3 Ah)
• Autonomy up to 5 years
• Wall mounting, height 0.9–1.3 m
• Dimensions 211 × 108 × 121 mm
• Accessories included: 4/8/12/15 m lenses, masks, skirting boards
