Description

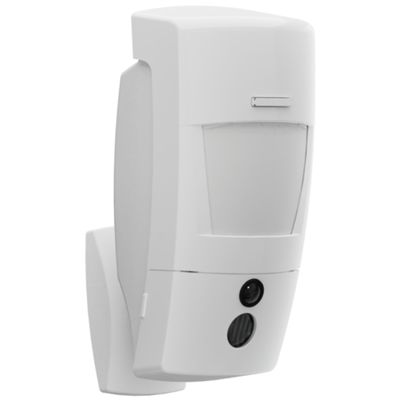

The DL195AX combines a reliable infrared detection system with a wireless HD camera, housed in a single unit with no wired power required.
PIR detection is followed by the automatic recording of a 10-second video sequence (3 fps) on the internal microSD, accessible from the front, and transmission via IP/4G module to the app, control units or via MMS, ensuring rapid visual verification of the alarm.
Equipped with LED lighting up to 7 m, mechanical protection and TwinBand® radio/sabotage protection, it offers a range of up to 1,000 m and autonomy with RXU23X battery up to 5 years.
Datasheet
• PIR detection 9 beams - 12 m, 90°
• 640×480 HD camera, 10 s @ 3 fps, microSD included
• LED illumination up to 7m in darkness
• TwinBand radio 868+433 MHz, range 1 000 m
• Self-protection opening, detachment, radio sabotage
• Alarm functions: warning, deterrent, pre-alarm, intrusion
• RXU23X battery power supply, 5 years
• Degree of protection IP31 / IK04
• Dimensions 130 × 66 × 64 mm
• Operating temperature 0 °C ÷ +55 °C
