Description

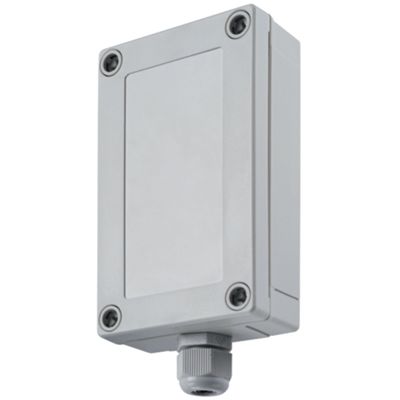

Robust external radio module, designed to connect wired sensors or technical probes to an Atral/Daitem system without direct wiring to the control unit.
It has two inputs, one for clean contacts (e.g. door/window sensors) and the other for probes such as SONIN (flooding), SONCS (power failure) or SONHG (gel).
The IP55/IK04 enclosure and press-etoupe ensure weatherproofing; includes test button and self-protection against opening and radio interference.
Powered by RXU33X battery (3.6 V/4 Ah), it guarantees real autonomy of up to 5 years.
The TwinBand radio supports secure communication and range up to 500m (line of sight).
Datasheet
• TwinBand 868 + 433 MHz radio, bidirectional
• Inputs 1× clean contacts (NO/NC), 1× technical probe
• Alarm, fault, ON/OFF functions
• Self-protection against opening, cable cutting, radio interference
• Protection indexes IP55 / IK04
• Power supply RXU33X battery (3.6 V – 4 Ah)
• Autonomy up to 5 years
• Cable press included
• Test button for power and detection
• Operating temperature –25 °C ÷ +70 °C
• Dimensions 160 × 80 × 35 mm
