Description

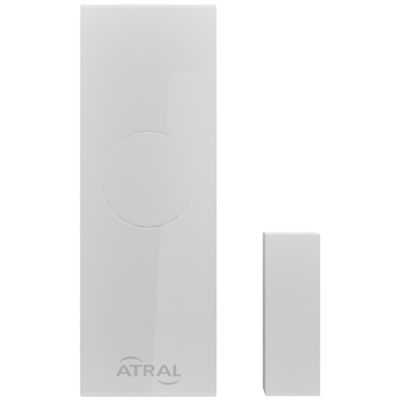

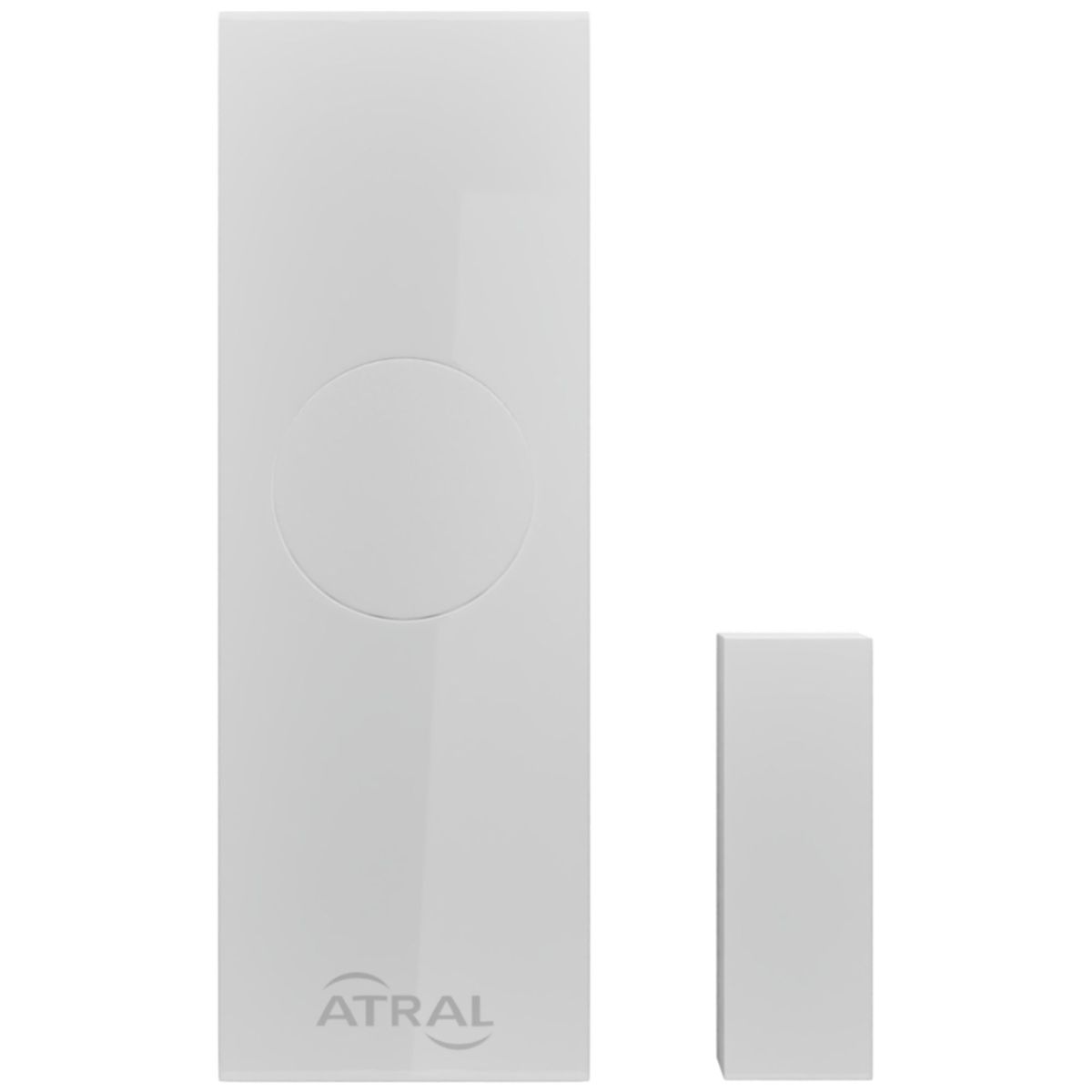

The DL278AX integrates a magnetic sensor that constantly monitors the presence of the magnetic field, if an intruder tries to bypass it with a magnet, the system immediately activates the sabotage alarm.
Designed to protect doors and windows, it offers resistance to shock and vibration, thanks to reliable detection up to 3 cm.
Equipped with encrypted TwinBand radio protocol (868/433 MHz), it guarantees a range of up to 600 m in open fields and resistance to interference.
Includes anti-opening and anti-detachment protection (if screwed), test LED, test button and RXU36X lithium battery with up to 5 years of autonomy.
Datasheet
• White color
• Magnetic anti-fraud MagShield technology
• TwinBand radio 868 + 433 MHz, range 600 m
• Self-protection opening, detachment, radio sabotage
• Red/orange two-color LED + test button
• Power supply 1× RXU36X (3V – 620mAh)
• Autonomy up to 5 years
• Magnet distance up to 3 cm
• Degree of protection IP31 / IK04
• Operating temperature –10 °C ÷ +55 °C
• Dimensions 85 × 28 × 13 mm (sensor)
• Adhesive or screw installation, positionable magnet
