Description

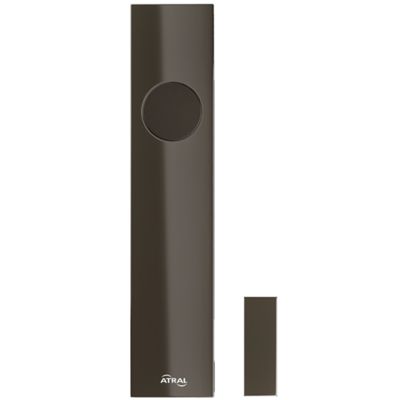

The DL287AX combines magnetic protection and impact detection for 360° security on doors and windows.
Its anti-magnetic MagShield technology immediately warns of the use of stealthy magnets, while the piezoelectric sensor detects impacts or break-in attempts, activating the pre-alarm or alarm of your choice.
It is equipped with LED and front test button, screw fixing for unit and magnet, and central mounting and programming.
The encrypted TwinBand radio protocol offers a range of up to 600 m, with protection against magnetic detachment and sabotage.
Powered by RXU34X battery, it guarantees up to 6 years of autonomy and resistance to shocks (IK04) and dust (IP31).
Datasheet
• Brown color
• Magnetic anti-fraud MagShield technology
• Piezoelectric shock sensor
• Integrated magnetic contact
• TwinBand radio 868 + 433 MHz, range 600 m
• Red/orange two-color LED + test button
• Self-protection opening, detachment, magnetic fraud
• Power supply 1× RXU34X (3 V – 1 Ah)
• Autonomy up to 6 years
• Degree of protection IP31 / IK04
• Dimensions 126 × 26 × 20 mm (detector), 34 × 11 × 13 mm (magnet)
• Temperature –10 °C ÷ +55 °C
• Mounting screw fixing, magnet on door or frame
