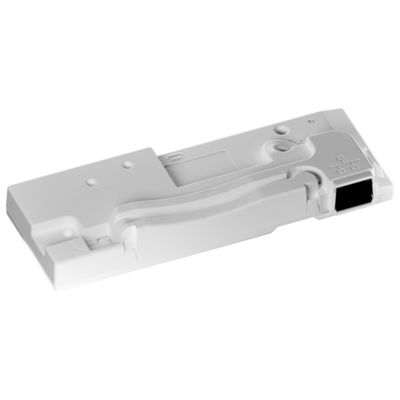

Atral DL505AX - 4G Ethernet/GSM Communicator Module

SKU: ATRDL505AX

Barcode: 3599430024481

Brand: Atral

Plug-in module with 1 wired input and 2 wired outputs for Atral control units

€292.07pcs

Other supplier availability Other supplier availability Other supplier availability Other supplier availability

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

Inserted inside Atral control units, it allows connection via the SIA DC09 IP protocol to a remote surveillance company.

It provides alarm transmission and App management functions, as well as direct transmission of images captured by detectors with cameras.

The module can also be inserted inside the DL520AX Box for greater security needs, thus assembling a combiner separate from the control unit.

Compatible with Atral line products with TwinBand technology.

For correct operation with the ADSL or 4G line, the control unit must be equipped with 1 rechargeable RXU03X battery (supplied).

Transmission protocols:

• SIA DC09 remote surveillance company

• IP user (for App use) and SMS

• Cyclic call for the operation of the communicator module via SMS or SIA protocol

• Including rechargeable lithium battery RXU03X 3.7 V - 1.2 Ah and power supply RXU28X

• 4G connection

Cerifications:
