Description

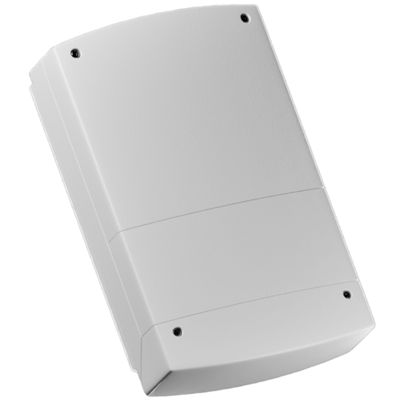

The DL700AX extends the radio range between the control unit and peripheral devices (sensors, sirens, keypads, transmitters, etc.), ideal for covering large surfaces, multi-storey buildings or areas with obstacles.
It offers secure and interference-resistant radio (TwinBand 868 + 433 MHz) with anti-jamming monitoring and continuous supervision by the control panel.
With RXU37X lithium battery included, autonomy reaches up to 7 years in real conditions, comes with bi-color LED to facilitate learning and indicate the presence of manipulations; includes opening/tear sensitivity and IR protection.
Can be installed indoors or outdoors thanks to the IP54/IK08 protection.
Via Atral Setup (app), it is simple to program and can manage up to 20 associated devices.
Datasheet
• TwinBand 868 + 433 MHz radio, rolling-code encryption
• Range up to 500 - 1000 m in open field
• Up to 7 years of battery life with RXU37X battery
• Connection supervision, battery, self-protection
• Two-color programming LED + anti-rattle indicator
• Inputs manages up to 20 radio devices
• Self-protection against opening, tearing, radio jamming
• Protection grades IP54 / IK08
• Operating temperature –25 °C ÷ +70 °C
• Indoor or protected outdoor use
• Dimensions 160 × 240 × 65 mm
