Description

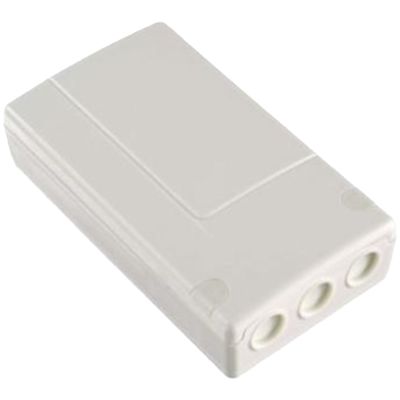

The DL781AX is designed to control electrical loads wirelessly, both indoors and outdoors. It can activate lights, sirens, irrigation or automations following a remote command via Atral remote controls, keypads or control units.
It supports 4 operating modes: start/stop, timer (90s–60min), pulse (1–9s) and alarm trigger scenarios (90s–30min).
The transmission uses the TwinBand 868/433 MHz protocol with rolling-code encryption, ensuring a range of up to approximately 500–700 m in open fields, high reliability and anti-jamming.
The watertight container has IP55 and IK04 ratings, is equipped with three cable inputs and is ready for installation on a Ø 60 mm box or bracket.
It is powered by the 230 V/50 Hz network (max 16 A) and manages loads up to: 500 W halogen lamps, 1500 W incandescent lamps, 450 W LEDs, 400 W fluorescent lamps.
In the event of a blackout, it keeps the transmission running for 36 hours via internal storage.
Datasheet
• TwinBand 868 + 433 MHz radio, rolling code, anti-jamming
• Power supply 230 V AC 50 Hz (16 A protected)
• Output 230 V AC, max 16 A (500 W halogen lamp, 1500 W incandescent)
• On/Off mode, timer 90 s–60 min, pulse 1–9 s, activation on alarm 90 s–30 min
• Degree of protection IP55 / IK04
• 3-cable input, prepared for Ø 60 mm box or bracket
• Radio range 2 m free field
• Autonomy in the event of a power failure up to 36 hours
• Operating temperature –20 °C ÷ +70 °C
• Dimensions 217 × 151 × 40 mm
