Description

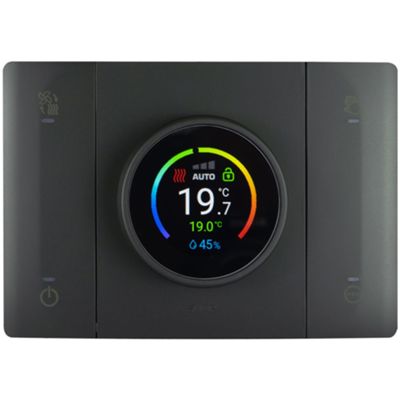

The T44 connected chronothermostat allows you to monitor and manage the room temperature easily and intuitively.
It has 2.4 Ghz wireless with IoT technology on Wi-Fi standard for the creation of Domina Smart IoT mesh systems and is powered by 230V.
The device does not require any communication gateway, the device has a built-in relay and is equipped with a temperature and relative humidity sensor.
It has several modes of operation.
Datasheet
HOW IT WORKS :
• Manual mode : selectable via the button with the hand symbol and the temperature can be set via the central dial,
• Automatic mode : selectable via the button with the hand symbol, the chronothermostat follows the temperature set programmed on the application in relation to the day of the week and the time,
• Temporary Manual Mode : if the thermostat is in automatic mode and the temperature set is changed by rotating the ring, the device forces manual mode for a time that can be set in the additional parameters. After this time, the chronothermostat returns to automatic mode (in the meantime the word "AUTO" flashes,
• Away mode : can be selected by holding down the button with the hand symbol for approximately 5 seconds, the thermostat enters "away" mode and sets itself according to the setting defined in the additional parameters, to exit it you must press the button with the hand symbol again for a further 5 seconds.
