Description

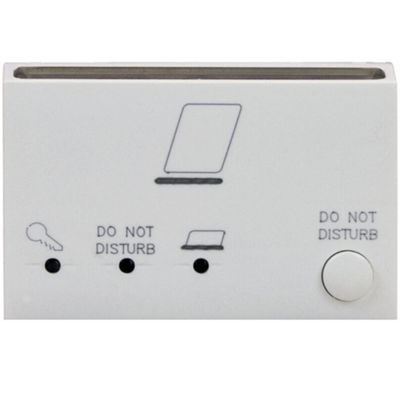

The 446AB‑LI is part of the AVE Tekla/Whitek 44 series as an internal reader for access control (e.g. entrances, hotels, offices).
It can be integrated into AVEBus bus systems and can operate in stand-alone mode or supervised by a web server.
It offers two clean contact relay outputs and two programmable inputs, multi-colored LEDs for signals (presence, “do not disturb”, programming) and a customizable bell button.
It can be flush-mounted (3 modules, 67.5 × 45 × 55.5 mm) and includes AVEBus power line + 12 V auxiliary.
Datasheet
• MIFARE reader technology (e.g. card/tag art. 44339CHU‑MB)
• 3-module format system 44 (67.5×45×55.5 mm)
• Outputs 2× dry contact relay (NO), max 24 VAC
• 2× programmable inputs (NO/NC) for sensors or buttons
• 3-state signalling LED + blue courtesy LED
• Bell button on the face, programmable
• AVEBus on M1 terminals; Vaux auxiliary power supply
• Consumption 2.4 W
• Matt white thermoplastic material RAL 9010
• IP41 protection rating; wall-mounted
• Stand-alone or supervised functions, light events, presence, “do not disturb”
