Description

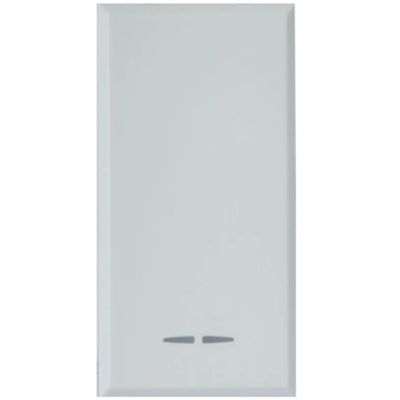

1 module button, part of the Whitek/AVEBus series, designed for manual entry of commands on AVE bus devices such as readers, sensors or internal transmitters.
The operator in anti-halogen ABS, with a matt finish, is press-fitted onto the S44 system support.
It does not have an illuminated gem but is compatible with LEDs integrated into the devices below, which display the status of the load or the associated function.
The button can be used as a custom keyboard and integrated into home automation or security projects.
Datasheet
• Not illuminated
• Assembly of 1 S44 module, push-fit
• Opaque white thermoplastic material, halogen-free
• Dimensions (WxHxD) 22.5 × 44.6 × 7.1 mm
• Color white RAL 9010 matt
• LED indicator no (the one on the device below is used)
• Degree of protection IP40 (internal recessed)
• Compatible with AVEBus controls and home automation systems
