Description

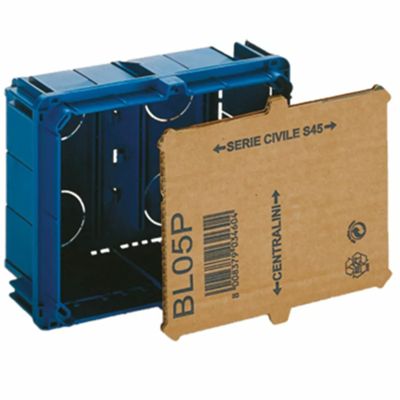

The Ave BL05P is a multifunctional flush-mounted box with mortar guard, designed to offer versatility and compatibility with different components of the AVE system.
Its compact size makes it ideal for installations in small spaces, while the possibility of battery coupling allows for modular expansion of the system.
It is compatible with 10 and 12 module armours, as well as with various branch covers and switchboards, ensuring adequate protection and easy integration into existing systems.
Datasheet
• Dimensions (W × H × D) 168 × 137 × 73 mm
• Plastic material
• Blue color
• Flush-mounted wall mounting method
• Rectangular shape
• Internal depth 73 mm
• Fixing of devices with screws or interlocking
• Battery-coupled via BLAS25 and BLAS35
• Compatibility:
- 45760/10 (10-module armour System 45)
- 44A12 (12-module System 44 armor)
- BL05C (IP40 branch cover)
- BLST05 (IP55 branch cover)
- BLST05TR (transparent IP55 branch cover)
- BLCG05C (IP40 branch cover with GWT 850°C)
- 53T05.. (IP40 cover with smoked door for 5 DIN module switchboard)
