Description

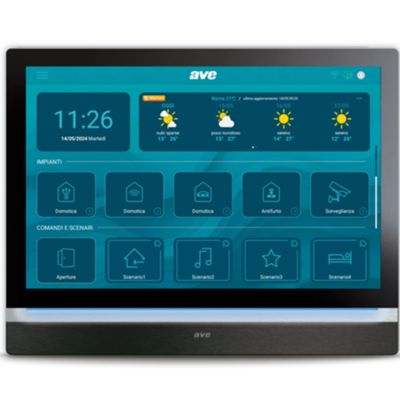

Hands-free internal station with 10" colour touch screen display in 16:9 format, designed for the V44 SMART IP video intercom system, the structure is made of bi-material in brushed natural anthracite colour and glass with black frame.
It features an LED bar for ambient light with user-selectable color.
The device can be powered directly by data cable through a 48V PoE switch or with a 24V switching power supply, it supports data connection via RJ45 or integrated Wi-Fi card.
It is compatible with the AVE Domina SMART home automation system (via a home automation supervisor equipped with a web server), burglar alarm control units from the AF927 range, external video intercom stations from the IP V44 SMART range and IP cameras visible via RTSP protocol, it supports the supervision of commands with KNX protocol.
The installation is built-in on a 3-module box installed horizontally using the special bracket supplied.
The dimensions of the device are 240 x 187 x 50 mm.
Datasheet
• 10" color graphic LCD display (1280 x 800 pixels)
• Power supply 24V DC or PoE 48V
• Quiescent current 200 mA (24V) – 110 mA (48V)
• Operating current consumption 350 mA (24V) – 220 mA (48V)
• RJ45 data connection or integrated Wi-Fi
• Compatibility with AVE V44 SMART, Domina SMART, AF927 control units, IP cameras (RTSP), KNX protocol
• Hands-free functions, unanswered call log, image acquisition of incoming call, open door alarm, "doctor's office" function
• Flush-mounted installation on 3-module box (bracket included)
• Dimensions (W x H x D) 240 x 187 x 50 mm
• Degree of protection IP20 (IP30 if installed)
• Operating temperature from -10°C to +55°C
• Brushed natural anthracite color with black glass frame
