Description

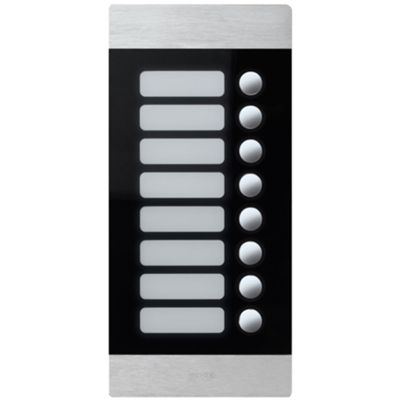

The AVE VI-PEAUX auxiliary column is an additional module that allows you to increase the number of calls from external stations in AVE V44 EASY and V44 SMART video intercom systems.
Made in monoblock, it can be installed both flush-mounted and on the wall. The device does not work autonomously and requires connection to an external master station via the cable provided.
Each unit adds 8 call buttons, allowing the system to be extended to a maximum of 36 calls.
The column is suitable for both internal and external installations and includes labels for identification tags.
Datasheet
• Number of call buttons 8
• Flush-mounted or wall-mounted installation
• Dimensions (W x H x D) 100 x 215 x 45.7 mm
• Power supply via connection to the external master station
• Body material aluminum
• Degree of protection IP20 (IP40 if installed in a panel)
• Operating temperature from -10°C to +55°C
• Accessories included connection cable and tag labels
