Description

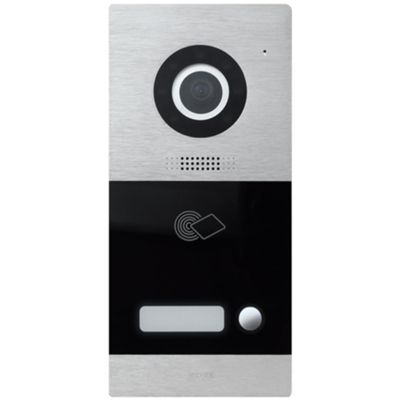

The AVE VIIP-PE1 is a single-family audio-video external station designed for the AVE V44 SMART IP video intercom system, made in a single block, it has a bi-material front aesthetic: black glass and brushed natural aluminium.
It is equipped with a orientable camera, two outputs for managing electric locks and an integrated MIFARE card reader.
The name tags are supplied with the device, and the installation can be done on the wall or built-in using special boxes and rain covers.
Power is supplied via 48V PoE switch or 24V power supply
Datasheet
• IP Technology
• AVE V44 SMART system compatibility
• Number of call buttons 1
• Front material black glass and brushed natural aluminium
• Adjustable camera
• Outputs for electric locks 2
• Integrated MIFARE card reader
• White LED nameplate lighting with variable intensity depending on ambient brightness
• 1 gate opening relay in “power” with input for auxiliary button, 1 with normally open contact
• “Door open” sensor input
• 48V PoE power supply or 24V power supply
• Operating current 250 mA max 24 V
• Stand-by consumption 70 mA max 24 V
• Wall or built-in installation using special boxes and rain covers
• Dimensions (W x H x D) 100 x 215 x 45.7 mm
