Description

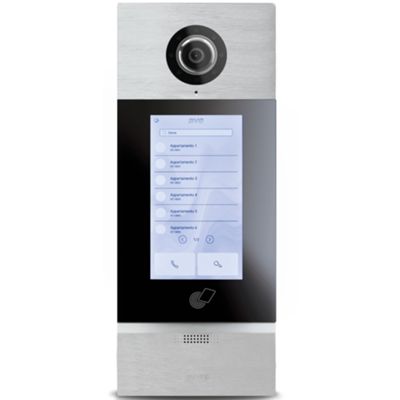

External audio/video station designed for multi-user buildings, compatible with the AVE V44 SMART IP video intercom system, the device is made of a single block and has a bi-material front aesthetic: black glass and brushed natural aluminium.
The 7" color touch screen display allows the display of a scrolling user list or a numeric keypad for selecting the desired unit.
It is equipped with a orientable camera, two outputs for managing electric locks (one in "power" with input for auxiliary button and one with normally open contact), an "open door" sensor input and an integrated MIFARE card reader.
Installation can be done on the wall or built-in using the appropriate boxes and rain covers.
Power is supplied via 48V PoE switch or 24V power supply.
Datasheet
• IP Technology
• AVE V44 SMART system compatibility
• 7" color touch screen display
• Adjustable camera
• Outputs for electric locks 2
• "Door open" sensor input
• Integrated MIFARE card reader
• Front material black glass and brushed natural aluminium
• Mounting type wall or recessed
• 48V PoE power supply or 24V power supply
• Operating current 250 mA max 24 V
• Stand-by consumption 70 mA max 24 V
• Dimensions (W x H x D) 148.5 x 369 x 49 mm
