Description

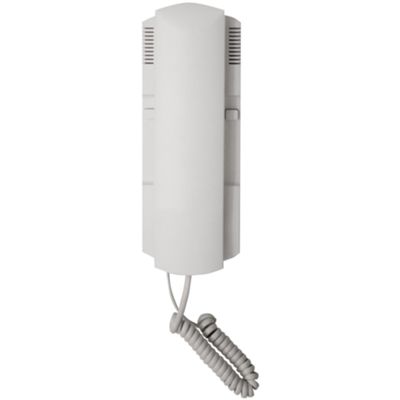

Internal audio station designed for the AVE V44 SMART IP digital video intercom system.
It is equipped with two function buttons that allow the opening of two gates controlled directly from the external station and a third optional one via an auxiliary relay module (VIIP-RELAY).
The handset offers the ability to adjust the volume and ringtone type, ensuring a customizable user experience.
Installation is simple and can be carried out on round (model 2501) or square (model 2502) flush-mounted boxes, with a recommended height of 1.5 metres from the ground.
The handset can be powered via a 48V DC PoE switch or 24V DC power supply.
Datasheet
• IP Technology
• 2 function keys (opening gates)
• 48V DC PoE power supply or 24V DC power supply
• Wall installation, on round (2501) or square (2502) boxes
• Recommended installation height 1.5 m from the ground
• Volume and ringtone type adjustments
• Dimensions (W x H x D) 78 x 210 x 53 mm
• White color
Package Contents:
• Cornet
• Connection cable
• User manual
