Description

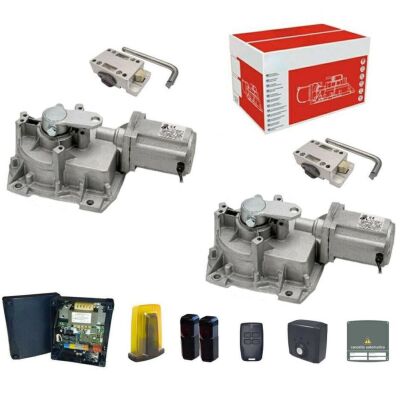

Complete kit for the automation of swing gates ELI VELOCE AC A35 KIT with 230 V underground electromechanical operators. Can be used on leaves up to 3.5 m in length. Foundation boxes excluded.
Super fast AC35 motors: Maximum comfort. Rapid opening to quickly free busy or dangerous roads to enter your property. Rapid closing to secure the property from possible intrusions.
New secondary arm: faster and safer attachment to the primary shaft, more reliable installation!
New crown made of
Integrated mechanical stops: always present, both on opening and closing, they make the installation invisible thanks to the elimination of ground stops.
Datasheet
Technical specifications:
• Speed 2.5 Rpm
• Unlock lever or lever with personalized key
• Electronic clutch impact reaction
• IP67 protection rating
• Environmental conditions -20 ÷ 55 °C
• AP+CH mechanical stops
• RIGEL 6, ALENA SW2 compatible control unit
• Motor voltage 230V
• Max leaf length without electric lock 2m
• Max engine torque 200 Nm
• Max engine width 3.5 m
• Max opening cycles per hour 40
• Maximum angle 120°
Kit contents:
• ELI Veloce AC A35
• Mitto B RCB04 R1
• Q.BO Key WM
• Compacta A20-180
• Radius LED AC A R1
• CMS
• Rigel 6 220-230V 50/60Hz
Certifications:
• THERE IS
