Description

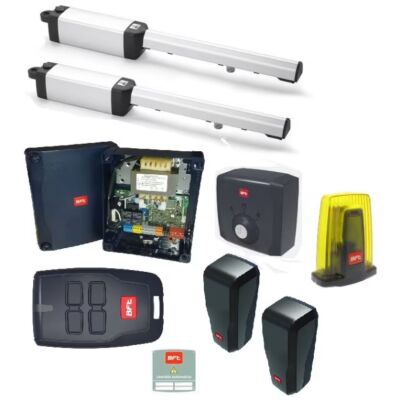

Complete kit for 24V PHOBOS AC KIT A25 swing gates up to 400 kg in weight and 2.5 m in length. Operators with covered worm screw, integrated mechanical stops.
Datasheet
Technical specifications:
• Max swing width 2.5m
• Electronic clutch impact reaction
• Max swing weight 400kg
• Useful rod stroke 350mm
• IPX4 protection rating
• Maximum angle 120°
• Maneuvering time approx. 18s.
• Environmental conditions -20 ÷ 55 °C
• RIGEL 6. ALENA SW2 control unit
• 230V board power supply
• Motor voltage 230V
• Power consumption 210W
• Customizable key unlocking
Certifications:
• THERE IS
