Description

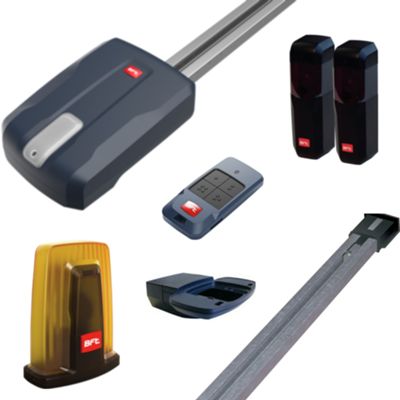

Kit for irreversible sectional garage doors with traction force 850 N and intensive use BOTTICELLI BT A850 KIT, door surface area 13 m². Opening speed 210 mm/sec. Three-piece chain track, length 2900 mm, useful stroke 2400 mm.
Fast and powerful motors: fast openings to minimize waiting times and intensive use of automation for every type of need, encoder and exclusive D-Track force management system for safe installations in all conditions.
Easy mechanical installation: even by just one person and fast thanks to the new quick Autoset procedure.
Integrated anti-theft: the models with full-display control unit offer the exclusive anti-intrusion function, the electronic board can become the control unit of a wired anti-intrusion system.
Datasheet
Technical specifications:
• Steel cable or cable release
• VENERE BT control unit A DIS
• Max opening speed 210 mm/sec
• D-Track impact reaction
• Nominal voltage 24V
• Max opening speed 240 mm/sec
• IP20 protection rating
• Power consumption 200W
• Type of limit switch: encoder + mechanical stop on opening
• Environmental conditions -20 ÷ 60 °C
• Push traction force 850 N
• Number of 60° maneuvers per day: 50
• Mechanical lock
• Door surface area 13m²
Certifications:
• THERE IS
