Description
Complete kit for the automation of swing gates with 24 V underground electromechanical operators. Can be used on leaves up to 4 m in length. Relative encoder limit switch. Foundation boxes excluded.

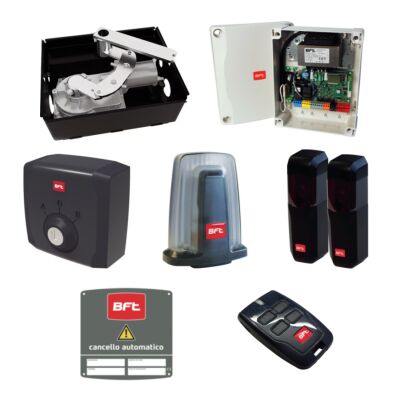

CONTAINS:
• 1 ELI BT A40 (24V underground motor for swing gates at 4m)
• 1 MITTO B RCB04 R1 (4-channel transmitter)
• 1 Q.BO KEY WM (external key selector with double contact)
• 1 COMPACTA A20-180 (pair of photocells adjustable 180° horizontally)
• 1 RADIUS LED BT A R1 W (flashing with integrated antenna)
• 1 CMS (warning sign)
• 1 THALIA (display control panel for swing gates)
Datasheet
Technical specifications:
• Max engine torque 350Nm
• Environmental conditions -20 ÷ 55 °C
• AP+CH mechanical stops
• Motor voltage 24V
• Maximum angle 120°
• Release with lever or lever with personalized key
• Speed 1.1 Rpm
• IP67 protection rating
• Max swing width 4m
• THALIA BT A80, THALIA, THALIA P compatible control unit
CONTAINS:
• 1 ELI BT A40 (24V underground motor for swing gates at 4m)
• 1 MITTO B RCB04 R1 (4-channel transmitter)
• 1 Q.BO KEY WM (external key selector with double contact)
• 1 COMPACTA A20-180 (pair of photocells adjustable 180° horizontally)
• 1 RADIUS LED BT A R1 W (flashing with integrated antenna)
• 1 CMS (warning sign)
• 1 THALIA (display control panel for swing gates)
Certifications:
• THERE IS
