Description

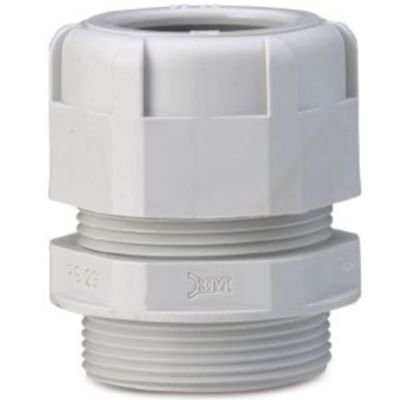

Cable gland designed to ensure safe and stable fixing of cables on panels with through holes.
Made of self-extinguishing polyamide 6.6 (UL 94 V2), it offers high mechanical and thermal resistance.
The integrated flange ensures even pressure distribution, improving sealing and preventing damage to the panel.
The internal nitrile rubber (NBR) gasket ensures a perfect IP68 seal on the cable.
The cable gland has an operating temperature range of -20 °C to +90 °C and is available in the colour grey RAL 7035.
Datasheet
• PG16 thread
• Supported cable diameter 10 - 14 mm
• Thread length 10 mm
• Material polyamide 6.6 (PA6.6), self-extinguishing UL 94 V2
• RAL 7035 grey colour
• IP68 protection rating
• Operating temperature from -20 °C to +90 °C
• Tight mounting on a flat and smooth surface
• Key size (E) 27 mm
