Made in Italy

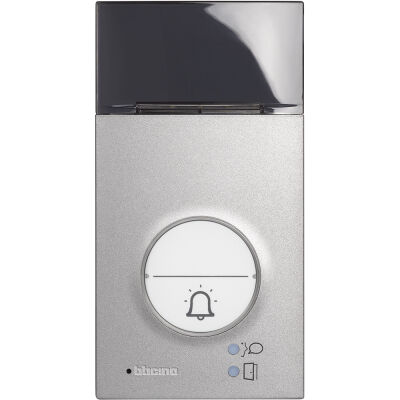

3000 line - intercom pushbutton panel
Description
2 WIRE audio pushbutton panel 343071 from the LINEA 3000 BTicino series for wall installation made with a zamak front.
This audio pushbutton panel can be configured for both single-family and two-family installations, allowing the opening of an electric lock connected directly between the S+ and S- terminals (18 V 4 A impulsive, 250 mA maintenance, 30 Ohm max).
The name tag lighting is made with white LED.
The degree of protection is IP54 while the degree of robustness is IK10: it is resistant to bad weather and impacts.
Datasheet
• IP54 protection rating
• Calls 2
• Line 3000
• Height 190 mm
• Width 100 mm
• Depth 26.65 mm
Properties
Cerifications:
