Description

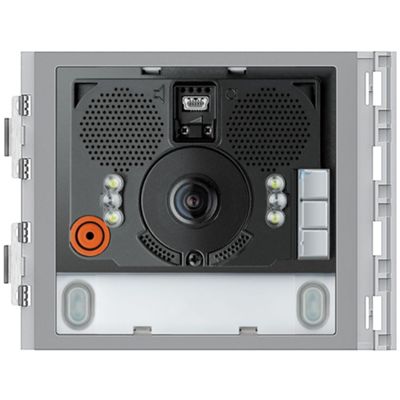

Wide-angle audio video module for the creation of 2-wire color video intercom systems, equipped with a color camera with 1/3" sensor and white LEDs for illuminating the shooting field, anti-fog preheating resistor and speaker and microphone volume adjustments.
It manages up to a maximum of 98 button calls using additional double-row button modules, allows the activation of an electric lock connected directly to the S+ and S- terminals (18 V 4 A impulsive - 250 mA maintenance on 30 Ohm max) and the connection of a local door opener button on the PL terminals.
It is designed for additional power supply and is equipped with front LEDs to indicate the operating status: door opener, active communication, call forwarded and system busy.
Integrated optical sensor for turning on the night backlighting to be completed with a finishing front, the device must be configured physically or via PC and TiSferaDesign software.
Datasheet
• Sphere Series
• Occupies 1 module
• 2-wire system type
• Height 91 mm
• Width 115 mm
• Operating temperature -25° +70°C
