Description

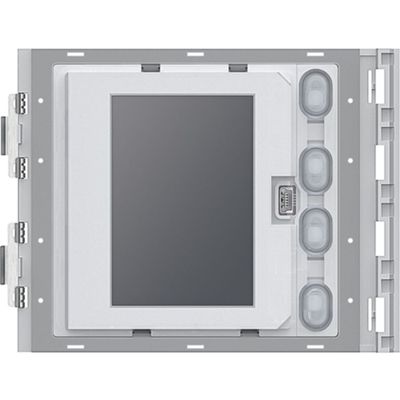

Module with graphic display to be combined with the 351100 speaker module or with the 351200 - 351300 audio video modules (connection via multi-cable supplied).
It can work in two modes: call from the phonebook or digital call, the call from the phonebook allows the call to be sent by scrolling the names associated with the residents on the display and it is possible to store 4000 resident names, in combination with the 353000 keypad module it is also possible to make a direct call to the apartment, simply by dialing the number corresponding to the resident; The digital call is always made in combination with the 353000 keypad module by typing a numeric code, it is recommended to place one or more 352200 plate modules next to the keypad to display the correspondence between numeric codes and user names.
It is possible to program the names in the address book in two different ways: manual entry using the display module buttons or entry via PC with specific software by downloading the file to the display module (recommended).
The lack of power to the system does NOT cause the loss of stored data and must be completed with a finishing front.
Datasheet
• Sphere Series
• Occupies 1 module
• 2-wire system type
• Height 91 mm
• Width 115 mm
• Operating temperature -25° +70°C
