Description

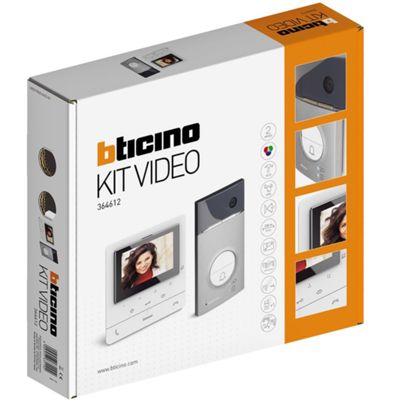

Single-family hands-free kit with CLASSE 100V16E video intercom and LINEA 3000 pushbutton panel with zamak front, wide-angle color camera.
The kit can be configured for single-family or two-family installations. Name tag lighting with white LED. Can be wall-mounted and flush-mounted with specific accessories: (350020) flush-mounting box plus (343061) flush-mounting accessory, to be purchased separately.
It can be accessorised with a rainproof roof (343051), to be purchased separately. The pushbutton panel meets IP54 protection rating – IK10 robustness rating.
The video intercom has a 5" LCD display and teleloop function (for use by those wearing hearing aids equipped with a T selector). It is equipped with 2 physical buttons for controlling the main functions - answering and closing the call - and 3 touch buttons for controlling the main functions - opening the lock, controlling the staircase lights and activating the entrance panel/cycling - plus 4 further configurable touch keys that take on different functions - e.g. intercom, additional lock activation, generic activations. Wall installation with bracket supplied or table installation with accessory supports (2 x 344692), to be purchased separately. The device, also equipped with a professional studio function, must be configured.
Datasheet
• Kit Villa Series - 3000 Line
• Calls 1
• 1 343081 LINE 3000 push-button panel
• 1 344672 CLASSE 100V16E video intercom
• 1 346050 6 DIN power supply
• 1 346250 Lock relay accessory
Properties
Warnings: |
|
