Description

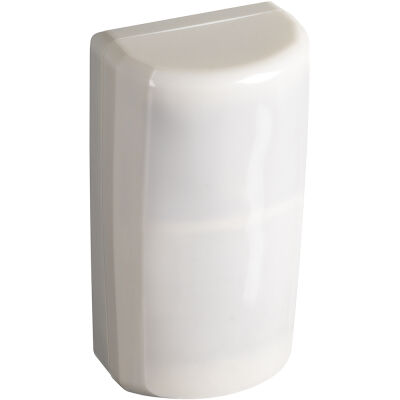

Dual technology detector (PIR +MW) with Pet immunity function, with a range of 12m.
It is equipped with invisible lenses thanks to the use of the material of the lens itself also for the design of the entire front.
Datasheet
Technical specifications:
- IR sensor two sensitive areas (double elements)
- Supply voltage 9.6 –14.5 Vdc
- Stand-by absorption 25 mA; 38 mA max
- Solid state alarm relay, 60 V, 50 mA isolation 1500 Vrms
- Tamper switch form A (NC) 50 mA at 30 Vdc
- Selectable sensitivities: 2 or 3 steps
- Microwave operating frequency ~10 GHz
- Microwave range 20 – 100% adjustable
- Operating temperature (- 10) – (+ 55) °C
- IP 40 rating
