Description

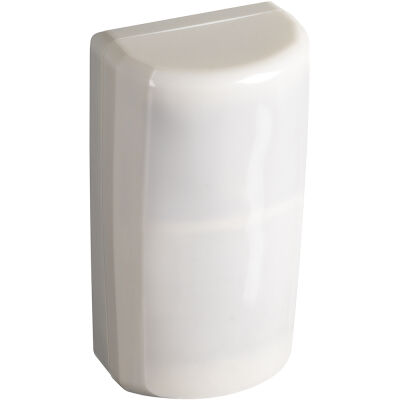

PIR motion detector with dual optics 868MHz wireless Pet immunity function with 12m range and CR123A lithium battery included for a maximum expected life of up to 4 years.
Indoor infrared (PIR) radio sensor (868MHz/bidirectional) for motion detection, with animal immunity function and adjustable range up to 12 metres.
Equipped with invisible lenses thanks to the use of the material of the lens itself also for the design of the entire front.
The number of pulses and immunity to disturbances can be programmed directly from the TiAlarm software.
It is also possible to deactivate the 4281 sensor with the system disarmed (default setting), drastically reducing current absorption and therefore increasing battery life.
EN 50131 Grade 2 Environmental Class II certification
Datasheet
Technical specifications:
• IR sensor two sensitive areas (double elements)
• Lithium CR-123A battery supply voltage – 3 V
• Battery life 4 years max
• Operating frequency 868 MHz
• Radio range 400 m in free field (the quality of the signal is influenced by various factors, check the measurement using the TiAlarm software)
• Operating temperature (- 10) – (+ 55) °C
• Humidity 95%
• IP 40 rating
• Dimensions: 113 x 60 x 45 mm (H x W x D)
