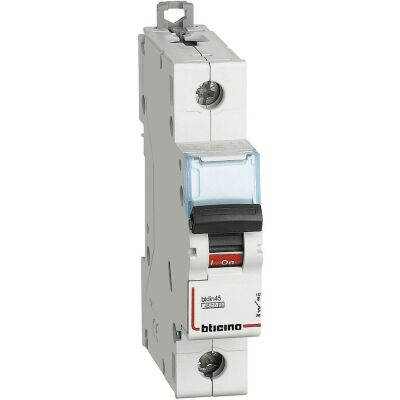

1P C20 4.5KA 1M BTDIN45 thermal magnetic switch
Description
Compact 1P overload and short-circuit protection circuit breaker with 20A rated current and 4.5KA breaking capacity.
Occupies 1 EN50022 module.
The BTDIN45 circuit breakers can have an upper/lower power supply indifferently and are suitable for isolation.
They have an integrated card holder and can be accessorised with:
- Contacts and releases, 1 recommended
- Motor controls
Datasheet
Technical specifications:
• No. of 1P poles
• Rated current 20A
• Breaking capacity 4500A
• Curve C
• Rated voltage 230 - 400V
• No. of EN50022 modules 1
Certifications:
• THERE IS
• IMQ
Properties
Producer:
BTicino
No. poles:
1P
Rated current:
20A
Curve:
C
Breaking power:
6000A
Cerifications:
