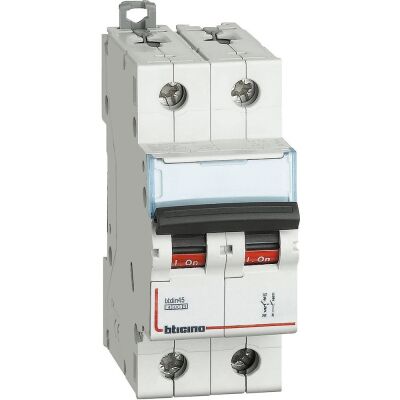

2P C25 4.5KA 2M BTDIN45 thermal magnetic switch
Description
Compact 2P overload and short circuit protection circuit breaker with 25A rated current and 4.5KA breaking capacity.
Occupies 2 EN50022 modules.
The BTDN45 circuit breakers with simultaneous opening/closing of all poles can have an upper/lower power supply indifferently and are suitable for isolation.
They have an integrated card holder and can be accessorised with:
- Contacts and releases (max. 3)
- STOP&GO LIFESAVER
- Motor controls
Datasheet
Technical specifications:
• No. of 2P poles
• Rated current 25A
• Breaking capacity 4500A
• Curve C
• Rated voltage 400V
• No. of EN50022 modules 2
Certifications:
• THERE IS
• IMQ
Properties
Producer:
BTicino
No. poles:
2P
Rated current:
25A
Curve:
C
Breaking power:
4500A
Cerifications:
