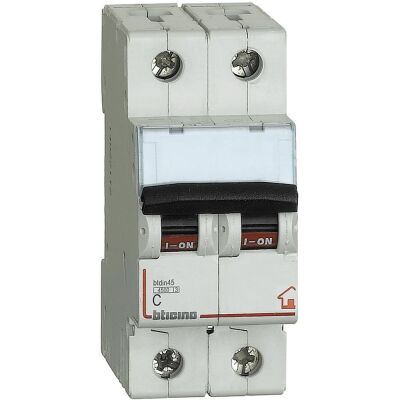

2P C10 4.5KA 2M BTDIN-RS circuit breaker
Description
Compact 2P overload and short circuit protection circuit breaker with 10A rated current and 4.5KA breaking capacity.
Occupies 2 EN50022 modules.
The BTDN-RS circuit breakers cannot be equipped with auxiliary or alarm contacts and undervoltage or shunt releases.
They cannot be coupled with the associated differential modules.
They cannot be used with TIFAST rapid cabling systems
Datasheet
Technical specifications:
• No. of 2P poles
• Rated current 10A
• Breaking capacity 4500A
• Curve C
• Rated voltage 400V
• No. of EN50022 modules 2
Certifications:
• THERE IS
• IMQ
Properties
Producer:
BTicino
No. poles:
2P
Rated current:
10A
Curve:
C
Breaking power:
4500A
Cerifications:
