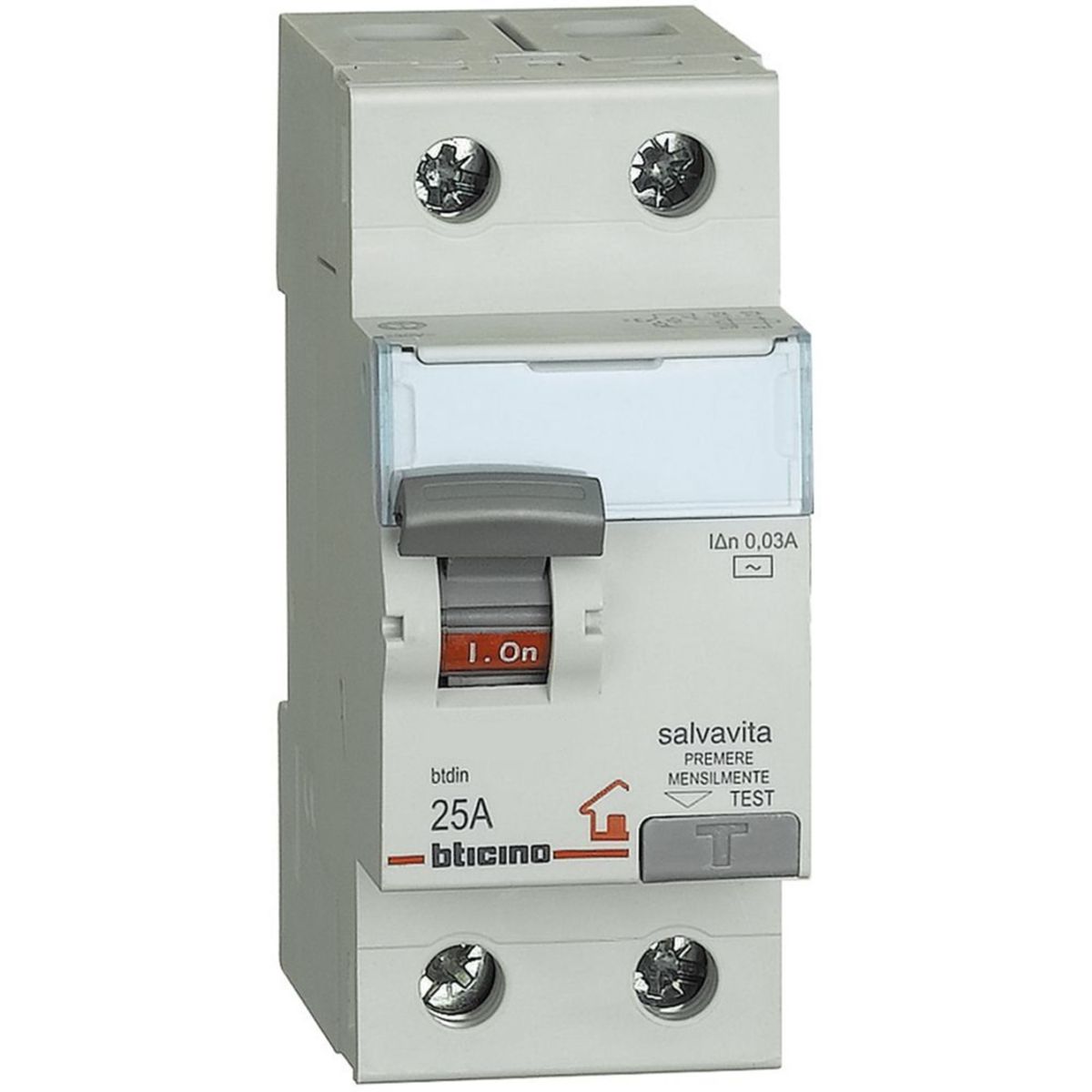

2-pole, 25 A, 30 mA trip threshold, residual current circuit breaker (RCCB) for protection against electrical faults
Description
2P type F differential life saver, with a nominal current of 25 A and sensitivity of 30 mA, designed for systems that may include devices with inverters, complies with the CEI EN 61008-1 standard.
It occupies 2 DIN modules inside the electrical panel, with IP20 protection rating, ideal for improving home safety on circuits with electronic equipment, avoiding leakage currents even with variable frequency components.
Datasheet
• Type F life-saving differential
• 2P Poles
• Rated current (In) 25 A
• Number of DIN modules 2
• Degree of protection IP20
• Height 83 mm
• Width 35.6 mm
• Depth 76 mm
• Maximum connectable conductor cable cross-section 25/35 mm²
• BTDIN Series
Properties
Cerifications:
