Bticino 343031 Line 2000 - video door entry panel
Description

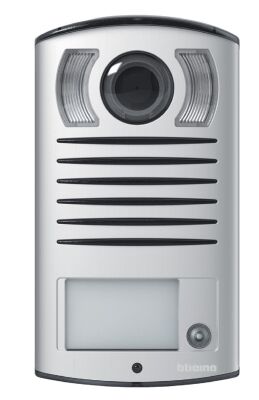

Push button panel 343031 Line 2000 BTicino 2 WIRE ideal for wall installation with aluminum front, color camera and white LED lighting for night shots.
It is equipped with a call button and a camera that can be adjusted on the horizontal and vertical axes by +/- 15°.
The 343031 pushbutton panel allows the opening of an electric lock connected directly between the S+ and S- terminals (18 V 4 A impulsive, 250 mA maintenance, 30 Ohm max).
The name tag is illuminated by a green LED.
IP54 protection rating. Robustness level IK07.
Datasheet
• IP54 protection rating
• Calls 1
• 2000 line
• Height 176 mm
• Width 98 mm
• Depth 31 mm
Properties
Cerifications:
