Description

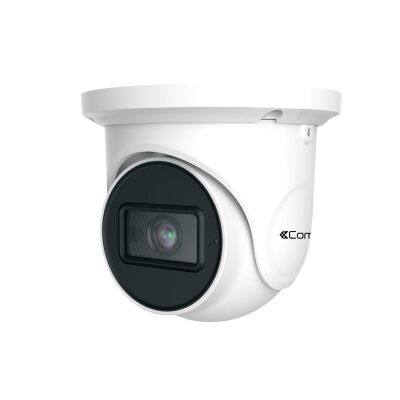

Advance series turret IP camera with 2.8÷12 mm motorized lens, 4MP@30 fps resolution and High frame rate function supported (2MP@60 fps).
IR LED with 50 meters range (Smart IR) ONVIF compatible, high frame function (60fps) is only supported by Advance 32/64/128ch series NVR.
It has various video analysis functions such as scene change detection, abandoned/removed object function, heat map, face detection, video tampering detection, line crossing detection (human/vehicle distinction), area Entry/Exit/Intrusion detection (human/vehicle distinction), line and area human/vehicle counting, metadata analysis, no parking, loitering and audio anomaly.
WDR 120Db, SD card slot up to 256GB and Audio: 1 in with IP67 waterproof die-cast aluminum container, 12VDC power supply and PoE IEEE802.3af.
Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari.
Compatible accessories: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
Datasheet
• 1/3" CMOS sensor
• Resolution 2592 x 1520 (4MP)
• 2.8-12mm lens, Motorized lens with autofocus
• LED illumination distance 50 m (Smart IR)
• BLC/DNR/HLC BLC/3D DNR/HLC
• Frame rate 30fps; HFR mode 60fps
• Multi Streaming (3 Streaming)
• Integrated micro SD card slot (supports up to 256Gb)
• Audio Inputs/Outputs 1 CH audio input
• IP67 grade
• IK10 grade
• 12V power supply
• Operating temperature -30 °C ~ 60 °C < 95 % RH
• Dimensions (mm) 111.5 x 111.5 x 99.6
