Description

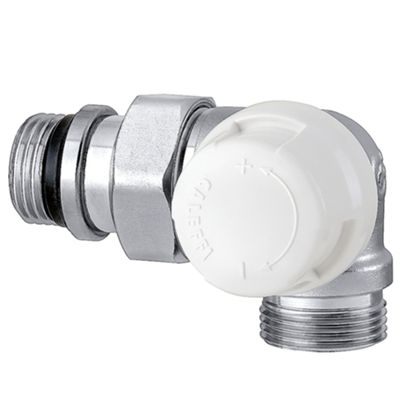

Right-angled valve, designed for thermostatic, electrothermal, electronic controls, with connection for 1/2" copper, plastic or multilayer pipe adapter
Radiator connection G 1/2" A (ISO 228-1) M inlet
Pipe connection 23 p. 1.5 outlet
Datasheet
• Double angle connections for copper, simple or multilayer plastic pipe 23 p.1.5 M
• 3/8” and 1/2” right or left radiator connection with tailpiece supplied with EPDM sealing gasket
• Chromed brass body
• White RAL 9010 ABS cap
• Double seal on the control rod with EPDM O-Ring
• Operating temperature range 5–100 °C
• Maximum operating pressure 10 bar
Properties
Cerifications:
