Description

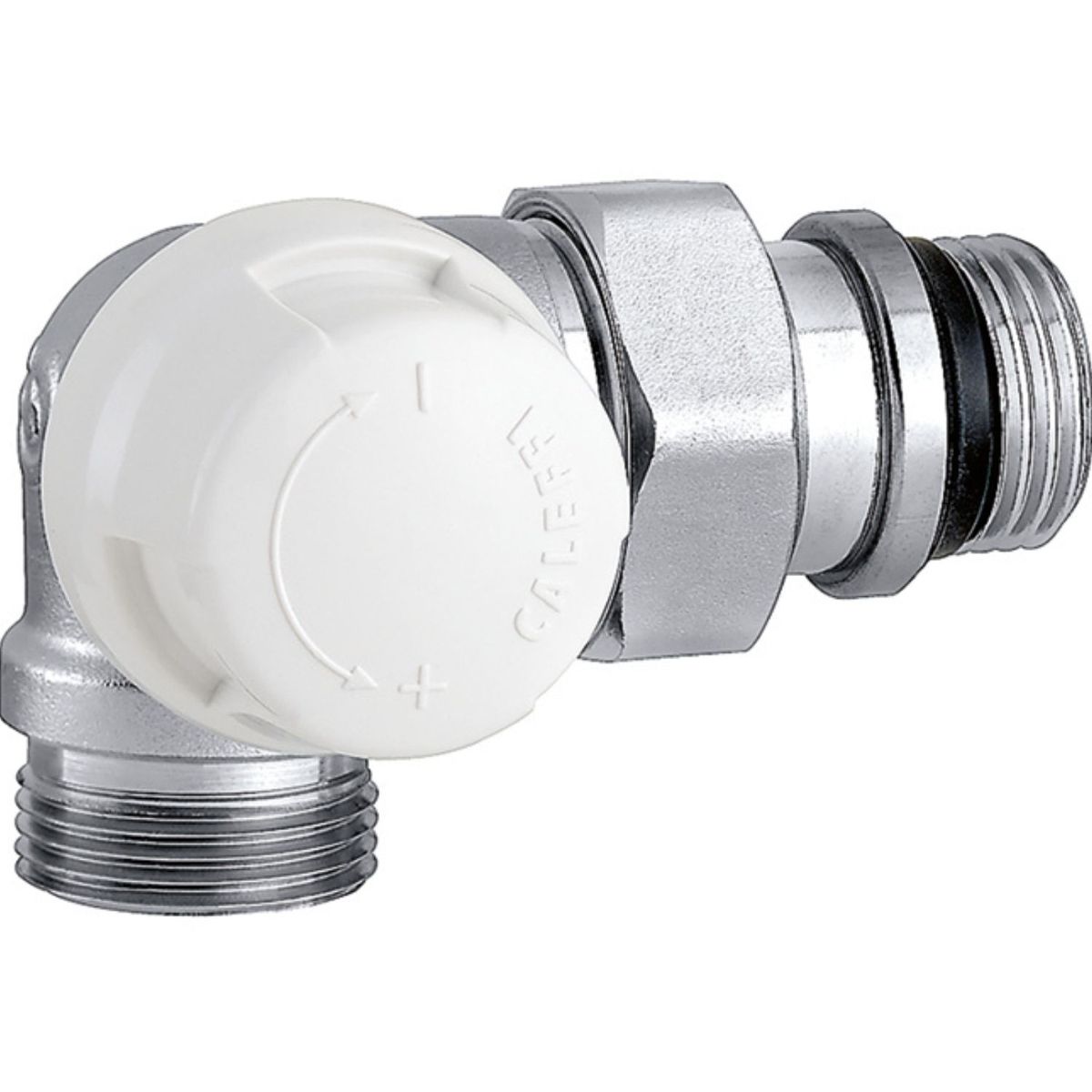

Squared lockshield towards the left, in brass, chrome-plated, with connection for copper, plastic or multilayer pipe adapter.
Body and main components: brass UNI EN 12165 CW617N, chrome-plated, shutter in stainless steel EN 10088-3 (AISI 303).
Protective cap: ABS RAL 9010.
Datasheet
• Temperature range 5÷100°C
• Maximum operating pressure 10 bar
• Pipe connection 23p. 15
• Radiator connection 1/2" M
