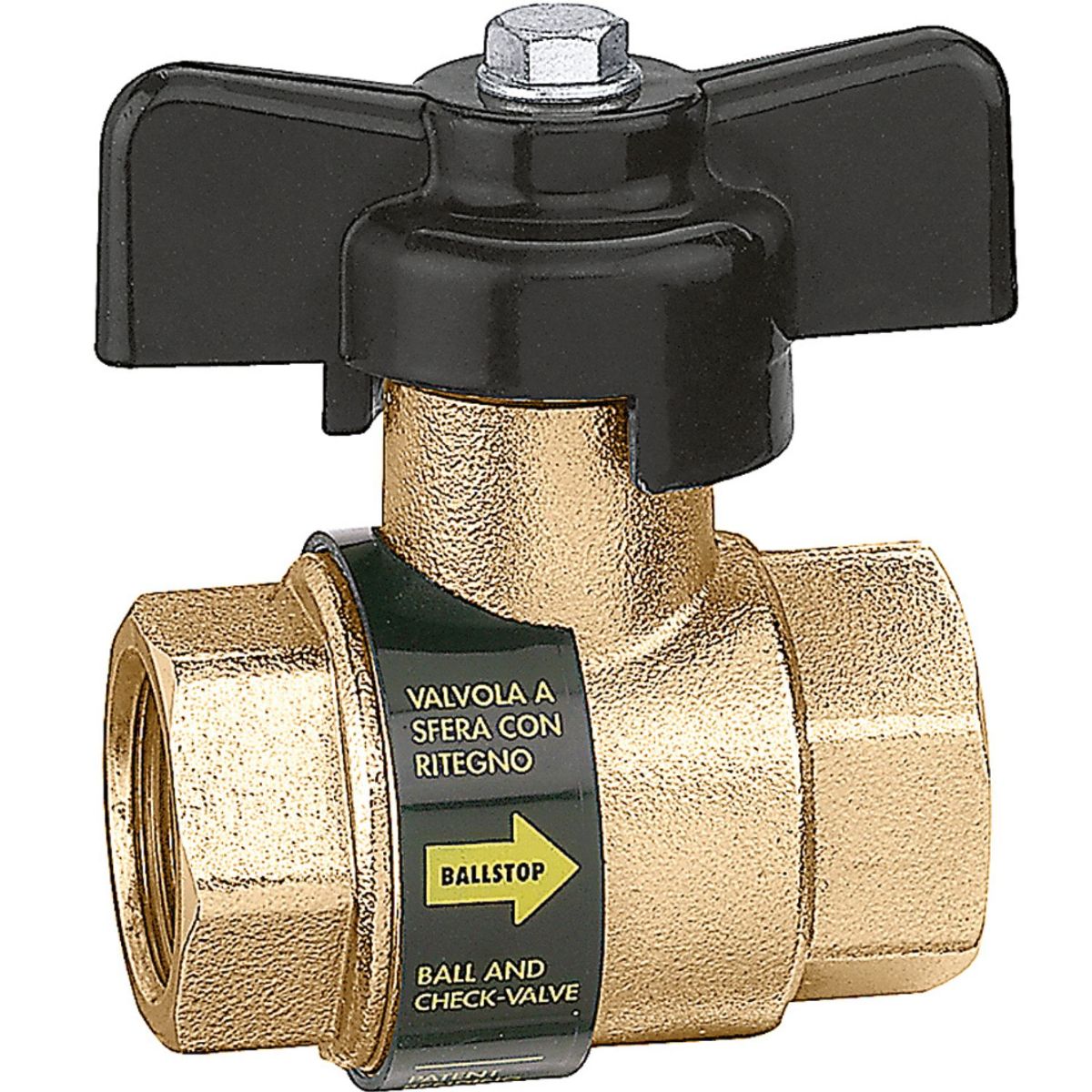

Ball valve with built-in check valve 3/4" FF
Description
One body, two functions. With theBallstop valve you can have a ball shut-off valve and a check valve in a single body! This allows you to have everything in one and have fewer devices on the pipe and speed up installation time!
G 3/4" connection (ISO 228-1) F
Datasheet
Materials
• Body: size 3/4, brass EN 12165 CW617N
• Ball: brass EN 12164 CW617N, chrome-plated
• Check valve:
- size 3/4” POM
• Check valve spring: stainless steel
• Check valve seal: NBR
• Control knobs (butterfly): aluminum
• Control rod seals: PTFE
Performance
• Fluid: water
• Maximum glycol percentage: -
• Maximum operating pressure: 16 bar
• Minimum check valve opening pressure (Δp): 0.02 bar
• Operating temperature range: 5–90 °C
Properties
Cerifications:
