Description

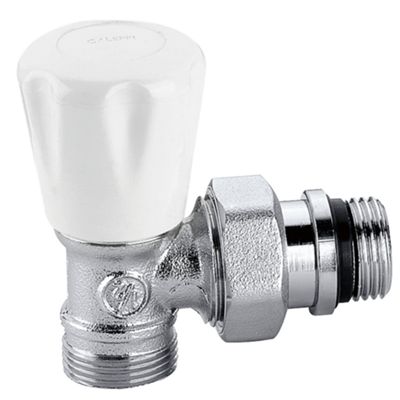

Manual valve, angle with connection for copper, plastic or multilayer pipe adapter.
Radiator connection G 1/2" A (ISO 228-1) M outlet, angled connection
Pipe connection 23 p. 1.5 inlet, angled connection
Datasheet
• Body: brass UNI EN 12165 CW617N, chrome-plated
• Shutter: brass UNI EN 12164 CW614N
• Hydraulic seals: EPDM
• Control knob and cap: ABS (RAL 9010)
Performance• Fluids used: water, glycol solutions
• Max. percentage of glycol: 30%
• Max. operating pressure: 10 bar
• Operating temperature range: 5÷100°C
