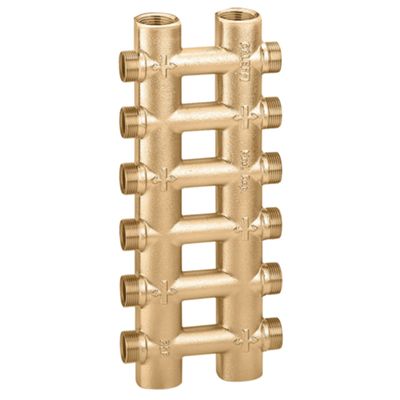

Double manifold, coplanar, 3/4" connections 6+6
Description
Double manifold, coplanar 6+6 the number of connections, 3/4" connection and cast body in monobloc brass, usable for heating or air conditioning systems.
Datasheet
• Monobloc brass body
• 6+6 outlets 23p.1,5M
• Maximum operating pressure: 10 bar
• Fluid temperature range: -10–110 °C
• Main centre distance: 60 mm
• Branch centre distance: 40 mm
Properties
Cerifications:
