Description

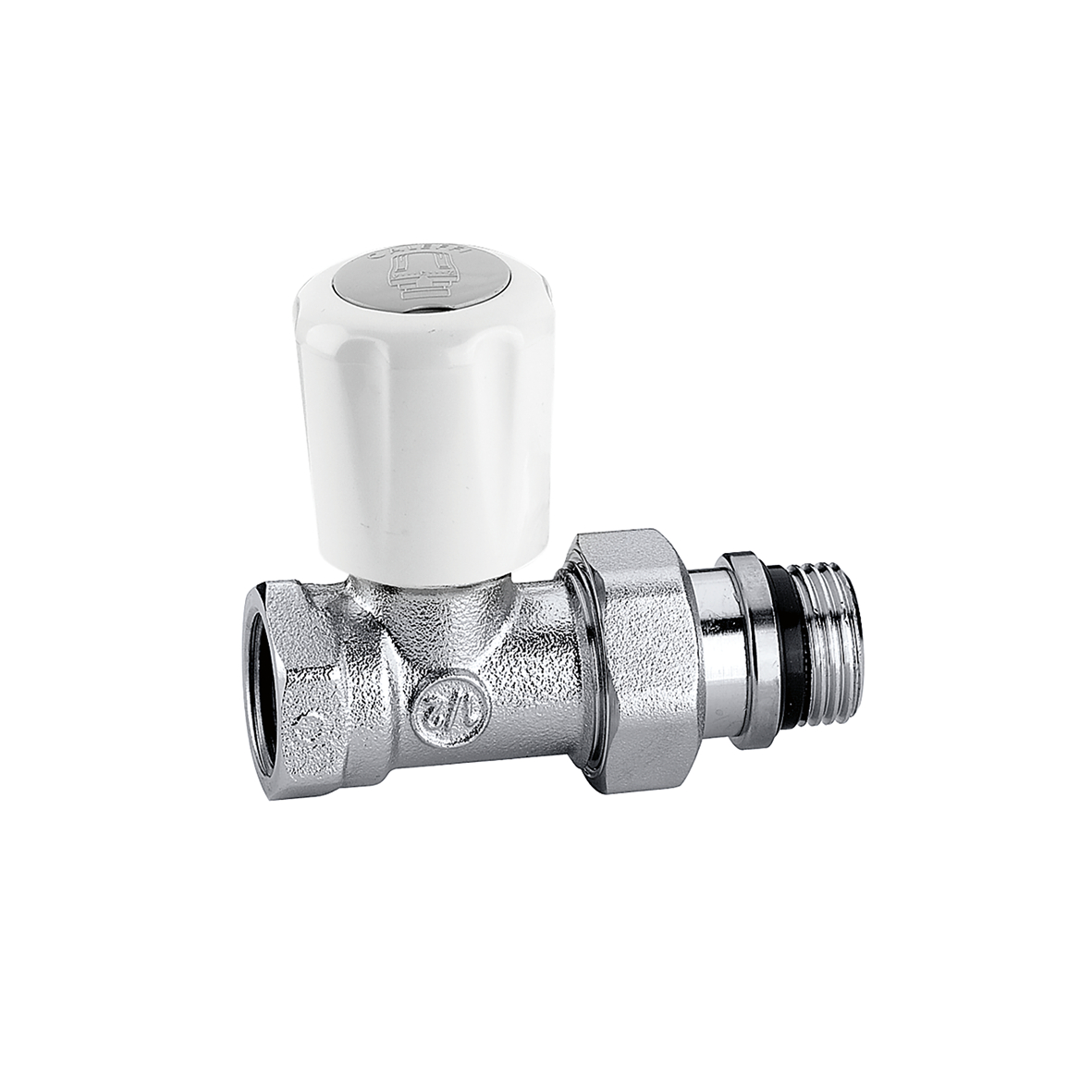

Thermostatic radiator valve designed for thermostatic and electrothermal controls, straight, with 3/8" iron pipe connection
Radiator connection G 3/8" A (ISO 228-1) M inlet, straight connection
Pipe connection G 3/8" (ISO 228-1) F outlet, straight connection
Datasheet
• Straight connections, for 3/8”, 1/2”, 3/4” or 1” F iron pipe
• Radiator connection 3/8” or 1/2” M with tailpiece provided with EPDM sealing gasket, 3/4” and 1” M with tailpiece without sealing gasket
• Body in brass EN 12165 CW617N Chromed
• White RAL 9010 handwheel, for manual control, in ABS
• Stainless steel control rod
• Double seal on the control rod with EPDM O-Ring
• Temperature range 5÷100°C
• Maximum operating pressure 10 bar
• Maximum differential pressure with thermostatic control mounted 1 bar
