Description

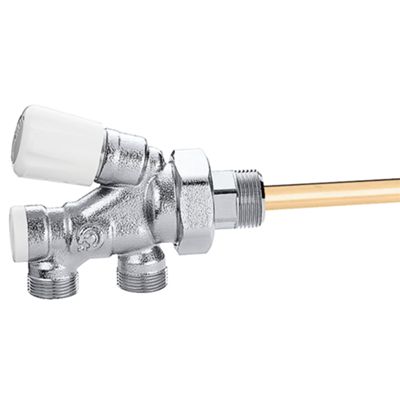

This Caleffi thermostatic valve with connection for copper, plastic or multilayer pipe adapter can be used on both single-pipe and double-pipe ring radiator systems. The valve is already set up for the possible installation of thermostatic controls (liquid, electronic, radio waves, etc.).
The 1/2" valve with 40mm centre distance is complete with a 30cm brass probe.
Radiator connection G 1/2" A (ISO 228-1) M inlet
Pipe connection 23 p. 1.5 outlet
For the transformation from single-pipe to double-pipe and vice versa, use a 10mm hex key as per the instructions.
Datasheet
• Pipe connection 23 p.1.5
• Centre distance 40 mm
• Radiator connection 12”, 3/4”, 1” right and 1” left
• Brass body, chrome-plated
• White RAL 9010 handwheel, for manual control, in ABS
• Probe holder support (deflector) in POM
• EPDM gaskets
• Brass probe 300 mm
• Brass lockshield valve
• Operating temperature range 5÷100°C
• Maximum operating pressure 10 bar
• Maximum differential pressure (with thermostatic control) 1 bar
• Transformable from single to double pipe and vice versa using a key hexagonal
• Flow rate to the radiator for the single-tube version 50% with manual knob (30% with thermostatic control)
