Description

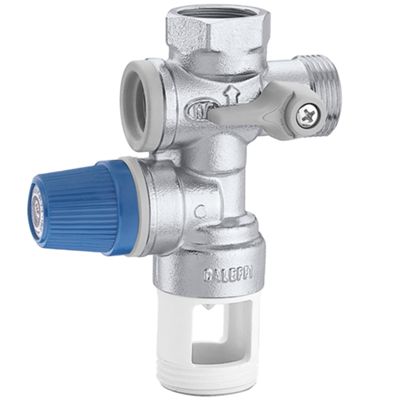

Safety group for plumbing systems and for the protection of storage water heaters.
The safety groups perform the following functions:
- They perform the safety function, to prevent the pressure of the fluid contained in the storage heaters from reaching dangerous limits,
- Prevent the return of hot water into the cold water supply network
- shut-off, to isolate the supply network and allow maintenance and control of the boiler circuit. The safety groups, the installation of which is mandatory by the current legislation, are certified as meeting the requirements of the European standard EN 1487.
Datasheet
• With stainless steel seat
• Certified to EN 1487
• Maximum discharge capacity: 4 kW
• Maximum operating pressure: 10 bar
• Fluid temperature range: 2–120 °C
• Calibration: 7 bar
• Finish: chrome-plated
• Material: brass
Properties
Cerifications:
