Description

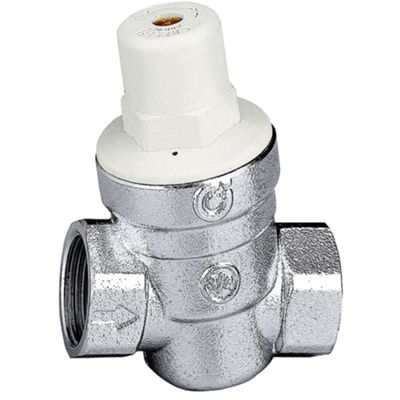

The pressure reducer is a useful device that, when installed on the home water supply, stabilizes and reduces the incoming pressure from the public network, so that you can have a correct water supply at home without pressure losses when opening each device commonly used in plumbing systems (sink, bidet, washing machine, cistern toilet, etc.).
This reducer with removable cartridge and filter was designed for small users, but thanks to its small size and its silence it is perfect for installing in the apartment as a protection device for the boiler.
G 3/4" connection (ISO 228-1) F
Datasheet
Materials
• Body brass EN 12165 CW617N, chromed
• Lid: PA6G30
• Control rod: dezincification resistant alloy EN 12164 CW724R
• Cartridge: POM
• Internal components: dezincification resistant alloy EN 12164 CW724R
• Membrane: EPDM
• Seals: EPDM
• Filter: stainless steel EN 10088-2 (AISI 304)
Performance
• Max upstream pressure: 16 bar
• Downstream pressure calibration range: 1÷6 bar
• Factory calibration: 3 bar
• Max operating temperature: 40°C
• Manometer pressure scale: 0÷10 bar
• Fluid used: water
