Description

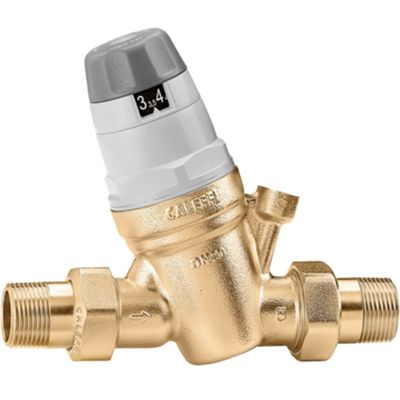

The pressure reducer is a useful device that, when installed on the home water supply, stabilizes and reduces the incoming pressure from the public network, so that you can have a correct water supply at home without pressure losses when opening each appliance commonly used in plumbing systems (sink, bidet, washing machine, cistern toilet, etc.).
This reducer has the particularity of being pre-adjustable, once installed it will always automatically reach the pressure with which it was adjusted. Furthermore, the pre-assembled monoblock cartridge placed inside has been designed and created to facilitate inspection and maintenance operations.
Connection R 1 1/2" (EN 10226-1) M union
Note With pressure gauge connection 1/4” F
Datasheet
• Body anti-dezincification alloy EN 1982 CC770S
• Cover PA6G30
• Control rod stainless steel
• Moving parts anti-dezincification alloy EN 12164 CW724R
• Membrane EPDM
• Seals EPDM
• Filter stainless steel
Performance
• Max. upstream pressure 25 bar
• Pressure setting range downstream 1÷6 bar
• Factory setting 3 bar
• Max. operating temperature 40°C
• Pressure gauge scale 0÷10 bar
• Filter passage light 0.51 mm
• Fluids used water
• Certification according to EN 1567
• Connections 1/2”÷2” (ISO 7/1) M with union
• Connections for pressure gauge 1/4” (ISO 228-1) F
