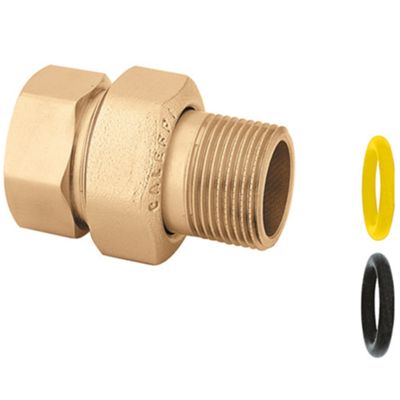

Three-piece straight fitting, with 1/2 F x M threaded connections with union
Description
Three-piece straight fitting, with 1/2 F x M threaded connections with union. In brass. Suitable for use in hydraulic and gas distribution systems.
Supplied with two O-rings:
For gas and fluid hydrocarbon systems (yellow O-Ring compliant with EN 549)
For hydraulic and sanitary systems (black O-Ring compliant with EN 681.1)
Use for gas systems with max. power 35 kW, according to UNI 7129-2015
Datasheet
• Connection 1: R 1/2" (EN 10226-1) M
• Connection 2: G 1/2" (ISO 228-1) F, union
• Temperature range for hydraulic systems: -25–120 °C
• Temperature range for gas and hydrocarbon fluid systems: -20–100 °C
• Max. operating pressure: 16 bar
Properties
Cerifications:
